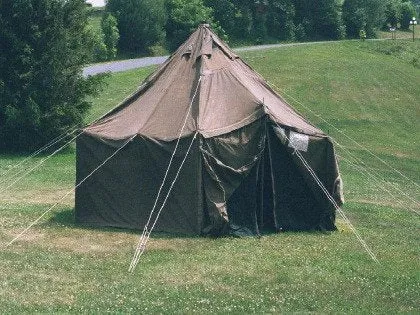

The GP Small (17’6” X 17’6”) is a six-sided pyramidal design equipped with sidewall poles and a center pole. Each side is 8’9″ , and the eave height is 5’8″ with a center peak height of 10 feet and 3 inches. This GP small tent features a front and rear door with screen doors for flow-through ventilation.
The tents roof is fitted with a stove pipe shield to accommodate a standard 4 inch military heater pipe; it also has two zip-up doors with insect screens. Disassemble or strike time is estimated to be 30 minutes with minimal manpower-four people max.
NSN: 8340-00-470-2335
Tent Specifications:
- Outer skin, lines, and transport/storage cover comes included.
- Can be purchased with or without the poles set.
- Tent Weight: 150 lbs.
- Poles (wood) weight: 45 lbs.
- Total weight : 195 lbs.
- Height: 10′ 6″
- Eave: 5′ 8″
- Diameter: 17′ 6″
- Floor Space: 198 sq. ft.
- Materials: 9.85 oz. duck
- Doors: 7′ high on opposite sides, 2 doors in all.
- Ventilation: 6 ventilators near peak of tent
- Stovepipe opening: For 4″ pipe. 1 center pole 10′ 6″ needed.
- 6 wall poles 5′ 8″
- 2 door poles 7″
- Pins Needed: 20 rope pins
- 10 pins around bottom of tent
- 30 total pins
*Tent conditions vary between used and new.
THIS IS A HEAVY ITEM
- IT IS EXCLUDED FROM OUR FREE and/or FAST SHIPPING
- THERE WILL BE ADDITIONAL SHIPPING FEES ADDED AFTER PURCHASE depending on location, and size of complete order once packed
- You will be emailed an updated invoice including dimensions , details and fees (usually within 24 - 48 hours of order being placed)
- Once final shipping confirmation and final payment have been made it will take 7 - 14 business days to ship (depending on location)
*** PLEASE NOTE that we work our best to find you the CHEAPEST shipping options available, and will provide you will all the weight and dimensions so you are able to also get quotes and will ship 3rd party if you have an alternative
